MILLING EQUIPMENT
Lifting the track pavement is the initial step of rehabilitation and repairs. The quality of the work of WIRTGEN cold milling machines (WIRTGEN Group) and their speed of performance have made them a reference in the track milling market. We present the range of milling equipment that we offer.

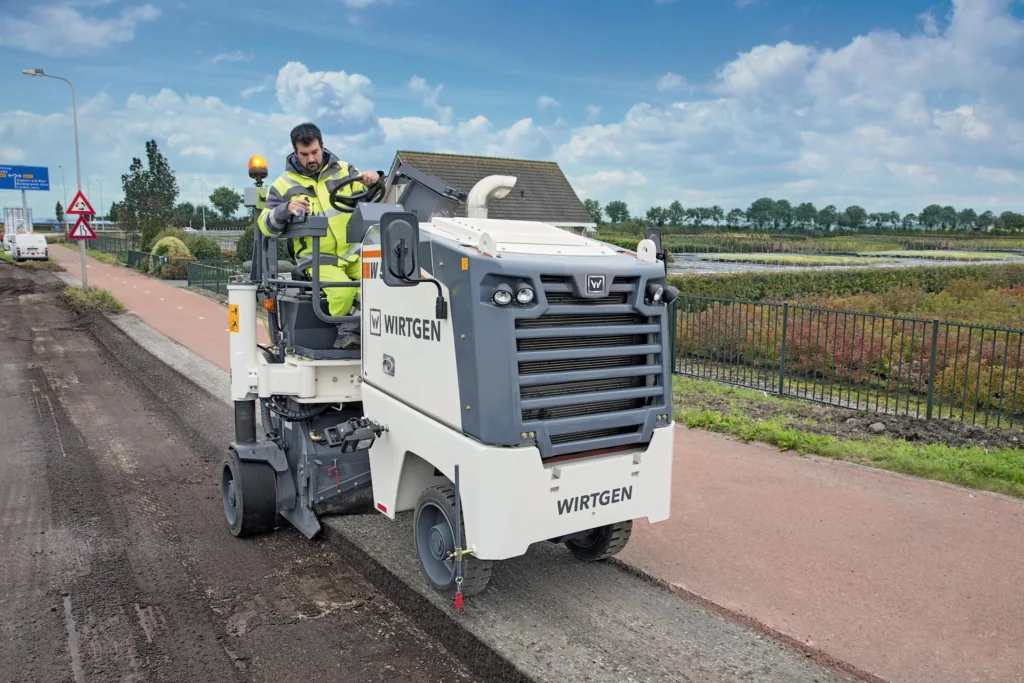

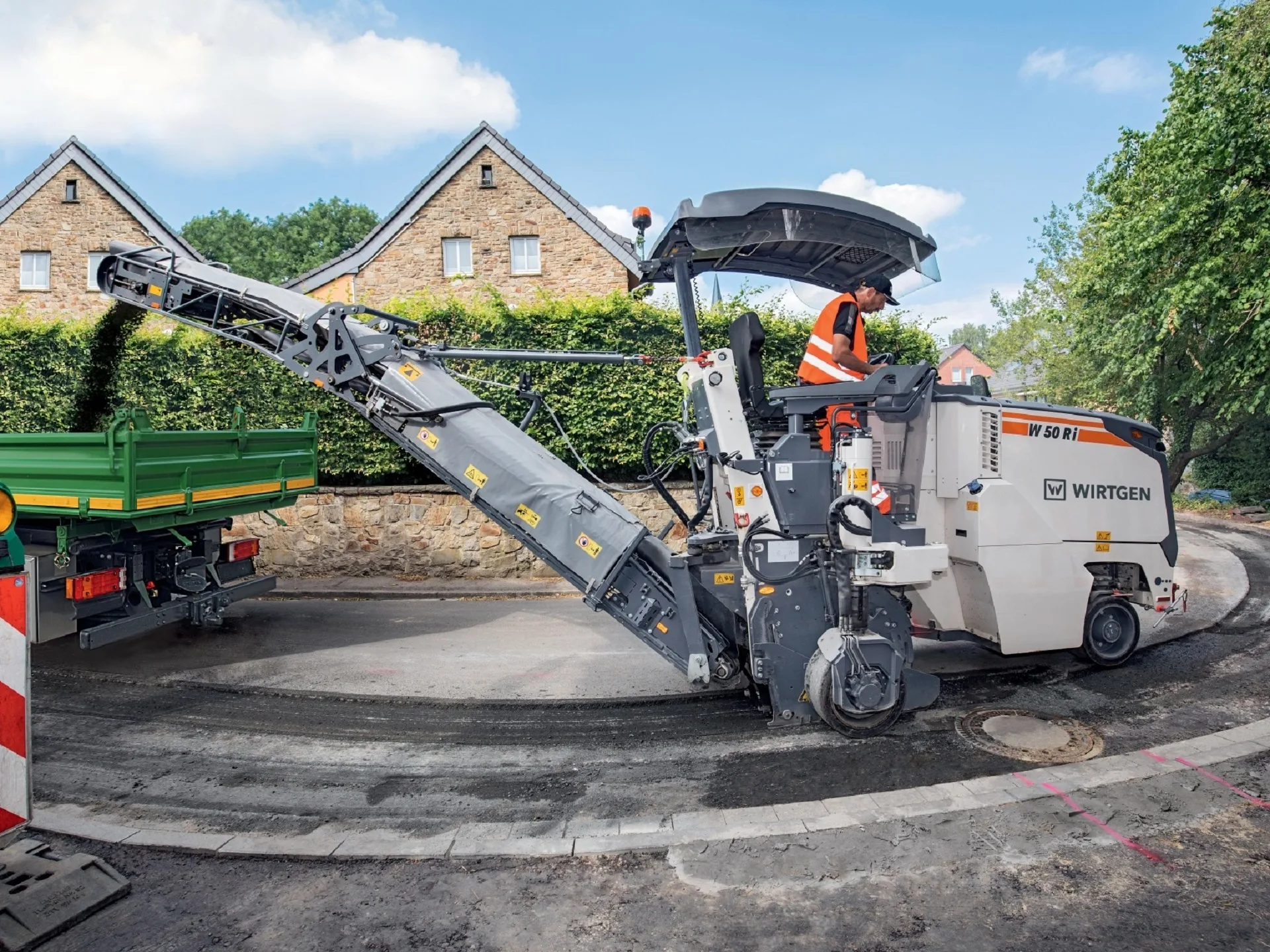

WIRTGEN SMALL COLD MILLING MACHINES
The small milling machines are equipped with wheel chassis and a milling drum installed at the rear. The lifted material is received via a height-adjustable, slewable discharge conveyor and immediately loaded onto transport vehicles. They are extremely maneuverable and have a right rear wheel with inward pivoting capability for milling flush to the edge along obstacles.
| Model | Milling width (mm) | Max. milling depth (mm) Milling (mm) |
| W 50R | 500 | 210 |
| W 60R | 600 | 210 |
| W 100R | 1000 | 300 |
| W 120R | 1200 | 300 |

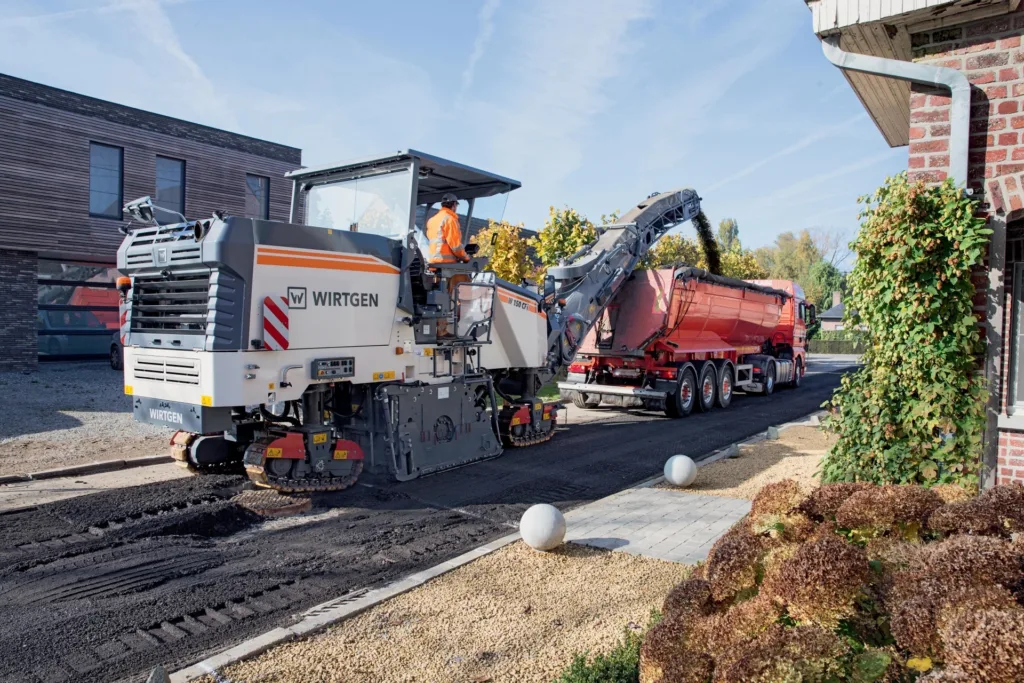

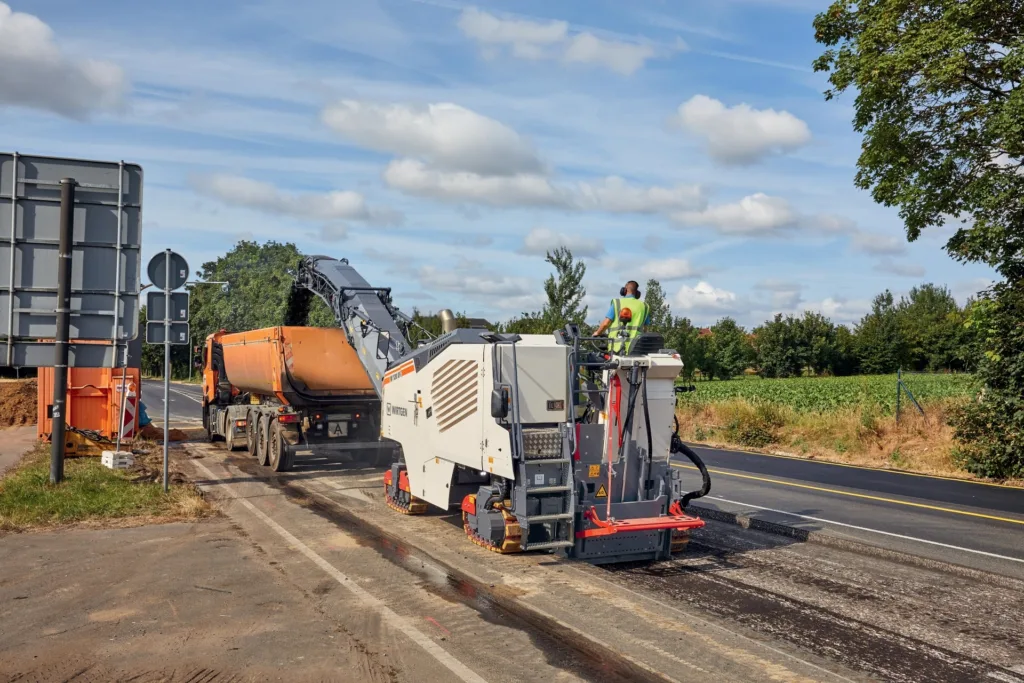

WIRTGEN COMPACT COLD MILLING MACHINES
Compact milling machines combine the advantages of large and small milling machines. They are maneuverable, easy to transport and can be used in very small spaces.
| Model | Milling width (mm) | Max. milling depth (mm) Milling (mm) |
| W 100F | 1000 | 330 |
| W 120F | 1200 | 330 |
| W 130F | 1300 | 330 |
| W 150F | 1500 | 330 |

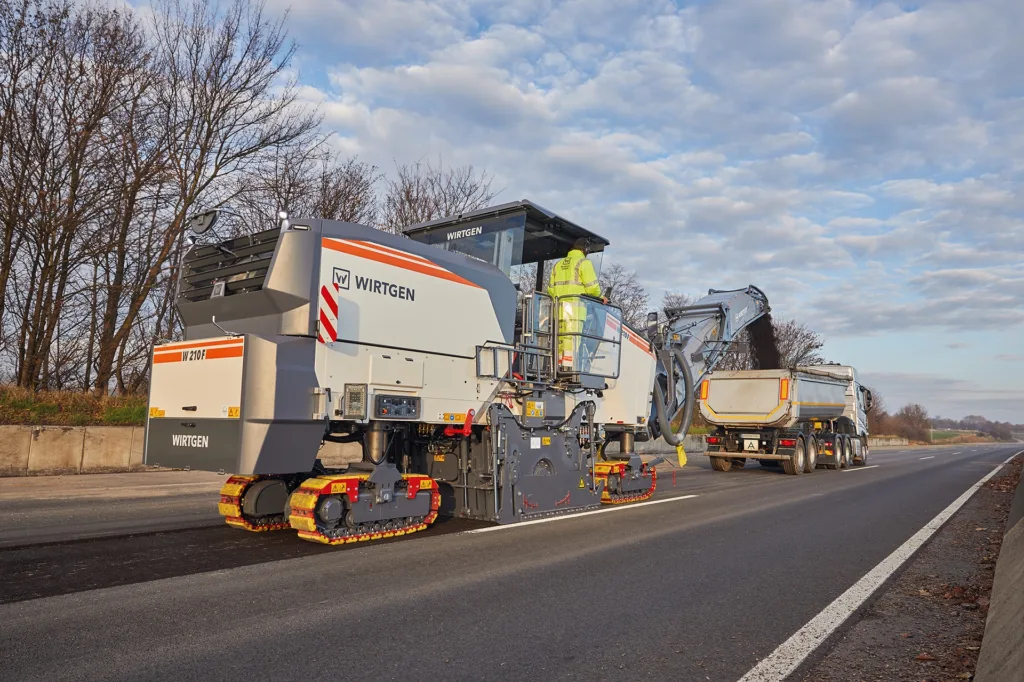

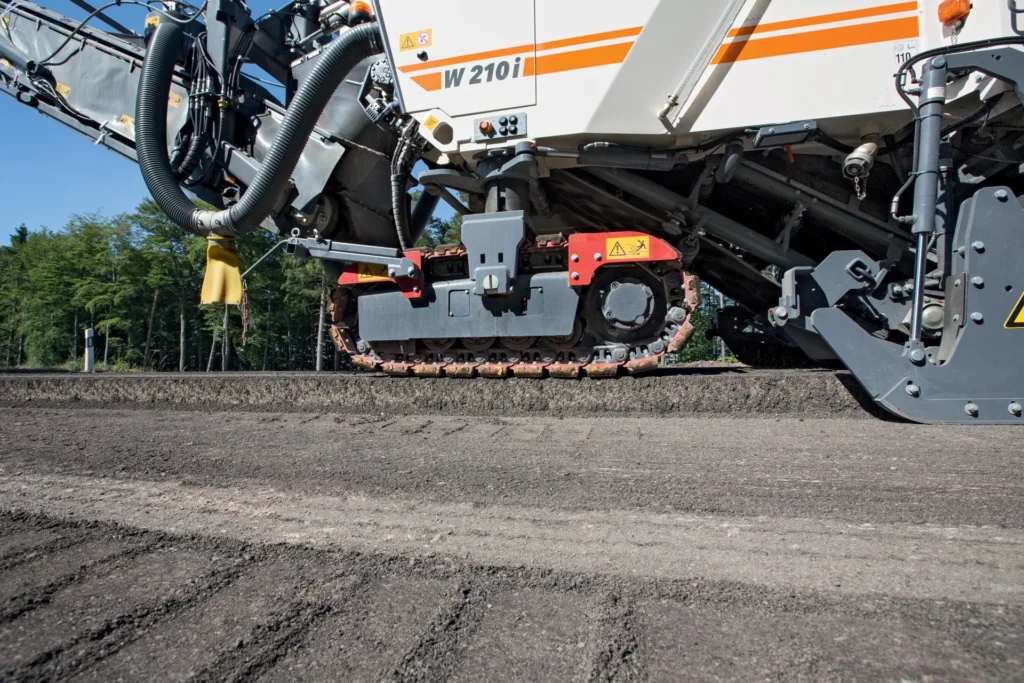

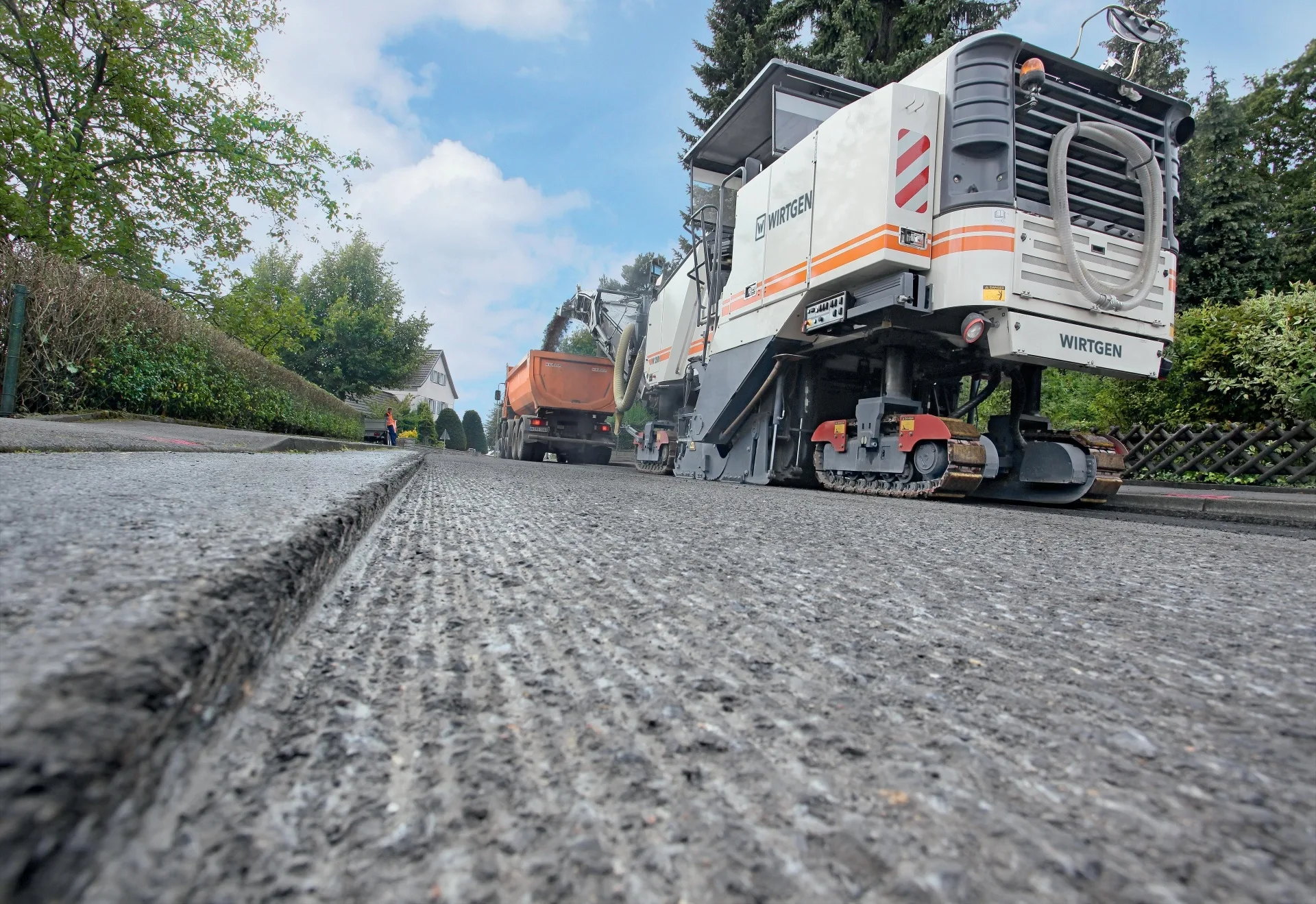

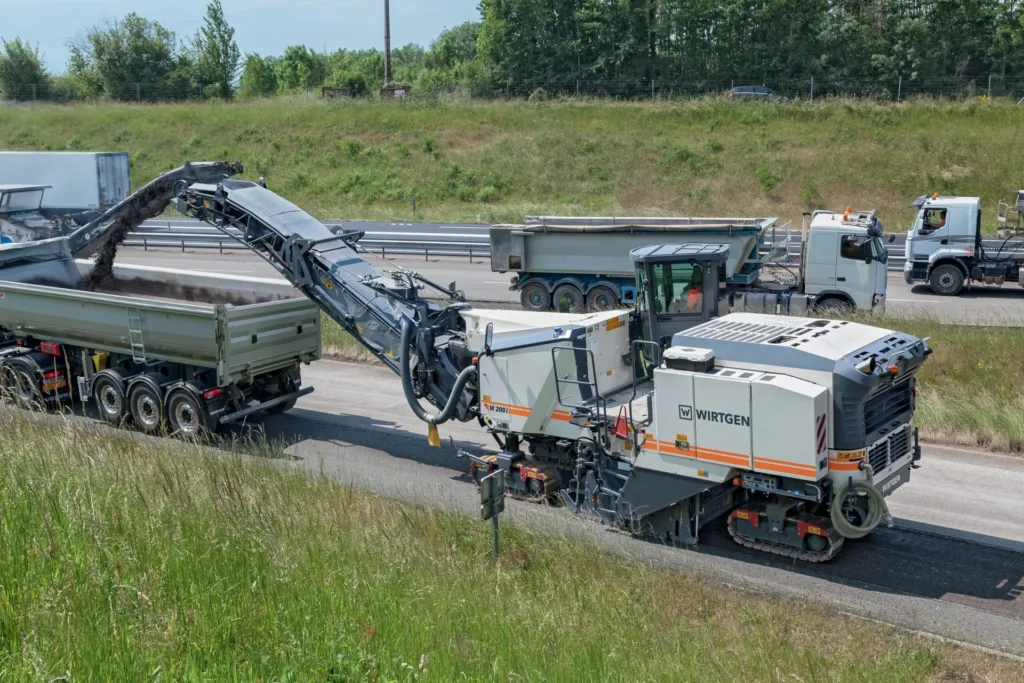

WIRTGEN LARGE COLD MILLING MACHINES
The large milling machines have a milling drum arranged centrally under the machine and a two-part front loading system. Thanks to the height-adjustable and slewable discharge conveyor, the trucks can be loaded quickly and flexibly.
| Model | Milling width (mm) | Max. milling depth (mm) Milling (mm) | Power (kW) |
| W 200F | 2000 | 330 | 455 |
| W 210F | 2000 | 330 | 571 |
